284
SWITCHES
GENERAL PURPOSE SLIDE SWITCHES – SERIES 46000 - 2 POSITION PHONE: 773 792-2700
* Please visit the product pages on our website for the most up-to-date product information

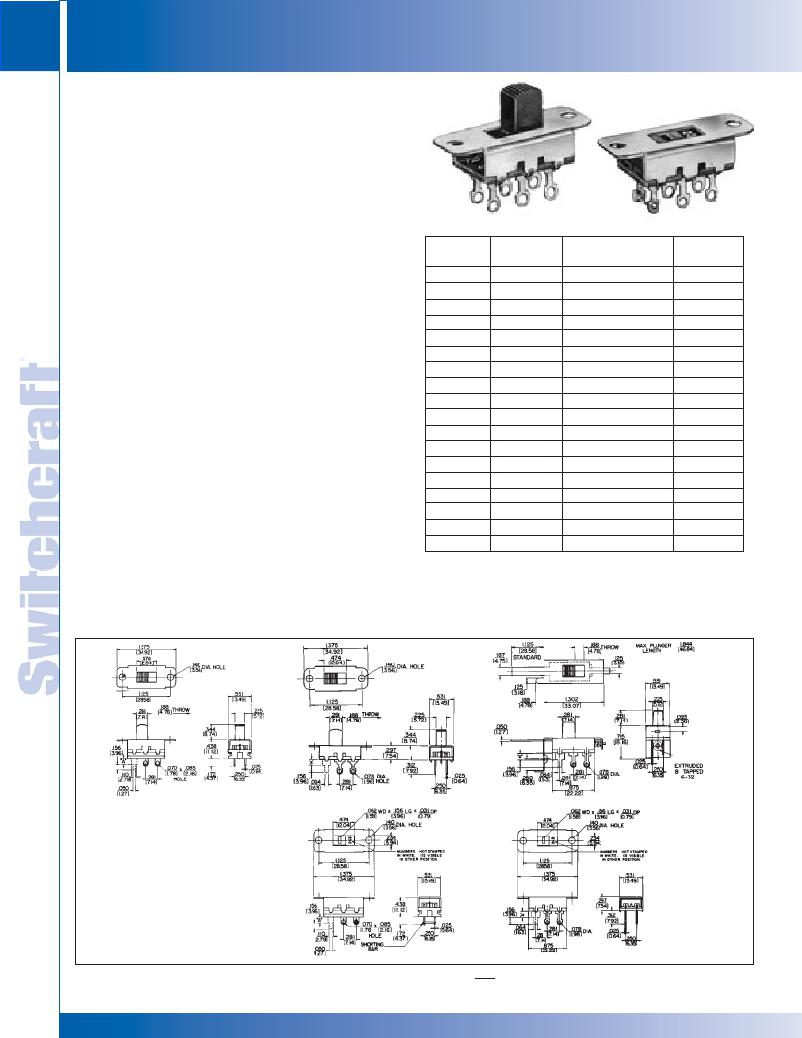

GENERAL PURPOSE SLIDE SWITCHES
SERIES 46200E, 46200R - 2 POSITION
SPECIFICATIONS
46206LR
PART NUMBERS
46206LFR
Contact Ratings: 0.5A DC and 3A AC, 125V non-inductive. (Also
Series
Series
1.5A, 250V non-inductive for Series 46000E only). Numbers
46206LFR and 46256LFR are not designed to switch more than
125V, and must be set to desired position before power is applied
to equipment, appliance, etc.
Listings: UL recognized and CSA certified. Series 46000R
switches are CSA marked on special order only. Ref. UL
card E40668 and CSA File 28260.
Housing: Steel, plated.
Knob: Black thermoplastic.
Terminals and Slider Contacts: Copper alloy, plated.
Insulation: Series 46000E: Thermoplastic.
Series 46000R: Rigid plastic.
Temperature Range: -4°F to +158°F (-20°C to +70°C).
Dielectric Strength: 1 kV rms @ sea level.
Insulation Resistance: 1 k M ? minimum.
SPECIAL ORDER FEATURES
1. .344" (8.74 mm) high knobs are standard; other heights
available. See chart on page 283.
2. #6-32 and #4-40 tapped flanges for mounting available
(except 46204MBR and 46206MP).
46200E
? 46201ME
? 46202LE
? 46202ME
46203LE
? 46203LSE
? 46203ME
46204LE
? 46204ME
46206LE
46206LFE
? 46206LSE
? 46206ME
-
46256LFE
-
-
-
-
46200R
46201MR
46202LR
? 46202MR
46203LR
? 46203LSR
46203MR
? 46204LR
? 46204MR
46206LR
46206LFR
? 46206LSR
? 46206MR
? 46206MP
46256LFR
? C46203LR**
? C46204MR**
C46206LR**
C46206LFR**
Description
SPST NO, Momentary
SPST, Locking
SPST NC, Momentary
SPDT, Locking
SPDT, Locking
SPDT, Momentary
DPST, Locking
DPST NO, Momentary
DPDT, Locking
DPDT, Locking (1)
DPDT, Locking
DPDT, Momentary
DPDT, Momentary*
DPDT, Locking (1) (2)
SPDT , Locking
DPST NO, Momentary
DPDT, Locking
DPDT, Locking (1)
Schematic*
I
II
II
III
III Shorting
III
2-I
2-I
2-III
2-III
2-III Shorting
2-III
2-III
V
III
2-I
2-III
2-III
3. P.C. terminals.
4. Plunger length on 46206MP - Other lengths from
.125" (3.18 mm) to 1.844" (46.84 mm) long.
5. Series 46000R switches are CSA marked on special
order only. See page 282.
46206LE
* Contacts are non-shorting, except as noted.
** "C" prefix specifies .078 inch (1.98) PC terminals, no mounting ears.
(1) Recommended for power selection, 115-230 legend, screwdriver slotted
actuator minimizes tampering.
(2) Shorting bars installed.
? Special order only; contact Switchcraft
46206MP
46206LR
46256LFE
46206LFR
DIMENSIONS ARE FOR REFERENCE ONLY
www.switchcraft.com
Inch
(mm)
? Registered trademark of Switchcraft, Inc.
Note: Contact your Switchcraft Representative for price and delivery
